Brand Name : Dongfeng
Model Number : HDT5281THB-37/4
Place of Origin : China
MOQ : 1 unit
Price : USD260000/UNIT
Payment Terms : T/T
Supply Ability : 50 units per month
Delivery Time : 30 working days
Packaging Details : in nude
Drive mode : LHD RHD
Engine : Cummins
Power : 315 hp
Emission : Euro 3
Wheel base (mm) : 4350+1300
overall dimension : 11310×2500×3520 (99.5M3)
Dongfeng Concrete Pump Truck

| Chassis specifications | Drive mode | 8×4 | |
| Chassis | DFD1311A4 | ||
| Engine | Model | Cummins C315 33 | |
| Type | 231/2200 | ||
| Power/Displacement(Kw/ml) | 231KW/8900 | ||
| Type of fuel | Diesel | ||
| Oil Consumption(km/L) | 22.4 | ||
| Tyre | Size | 11.00R20 | |
| Gear Box | Mechanical 6 speed gear box | ||
| Steering | Power assist steering | ||
| Air conditioner | A/C | ||
| Dimensions | Overall dimension (mm) | 11310×2500×3520 (99.5M3) | |
| Wheel base (mm) | 1950+4250+1300 | ||
| Front/Rear tread(mm) | 2022/1830 | ||
| Performance | Max. speed(Km/h) | 90 | |
| App./Dep. angel (°) | 16/18 | ||
| Max. gradability (%) | 30 | ||
| Min.turning diameter(m) | 22 | ||
| Min.ground clearance(mm) | 240 | ||
| Mass | Payload (Kg) | 25000 | |
| Curb weight(Kg) | 20770 | ||
| G.V.W (Kg) | 45000 | ||
| Axle Loading Weight(Kg) | 6000/7000/17500 | ||
|
|

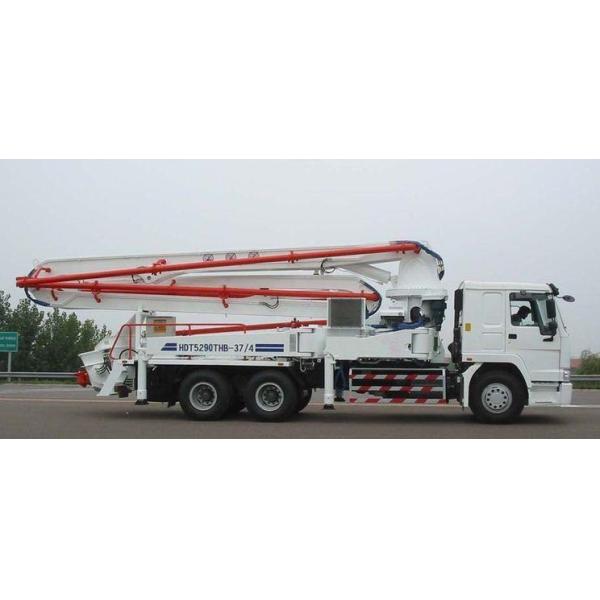

37m、39m truck-mounted concrete pump 6*4 Images |
